Made to accelerate. Engineered for winning.

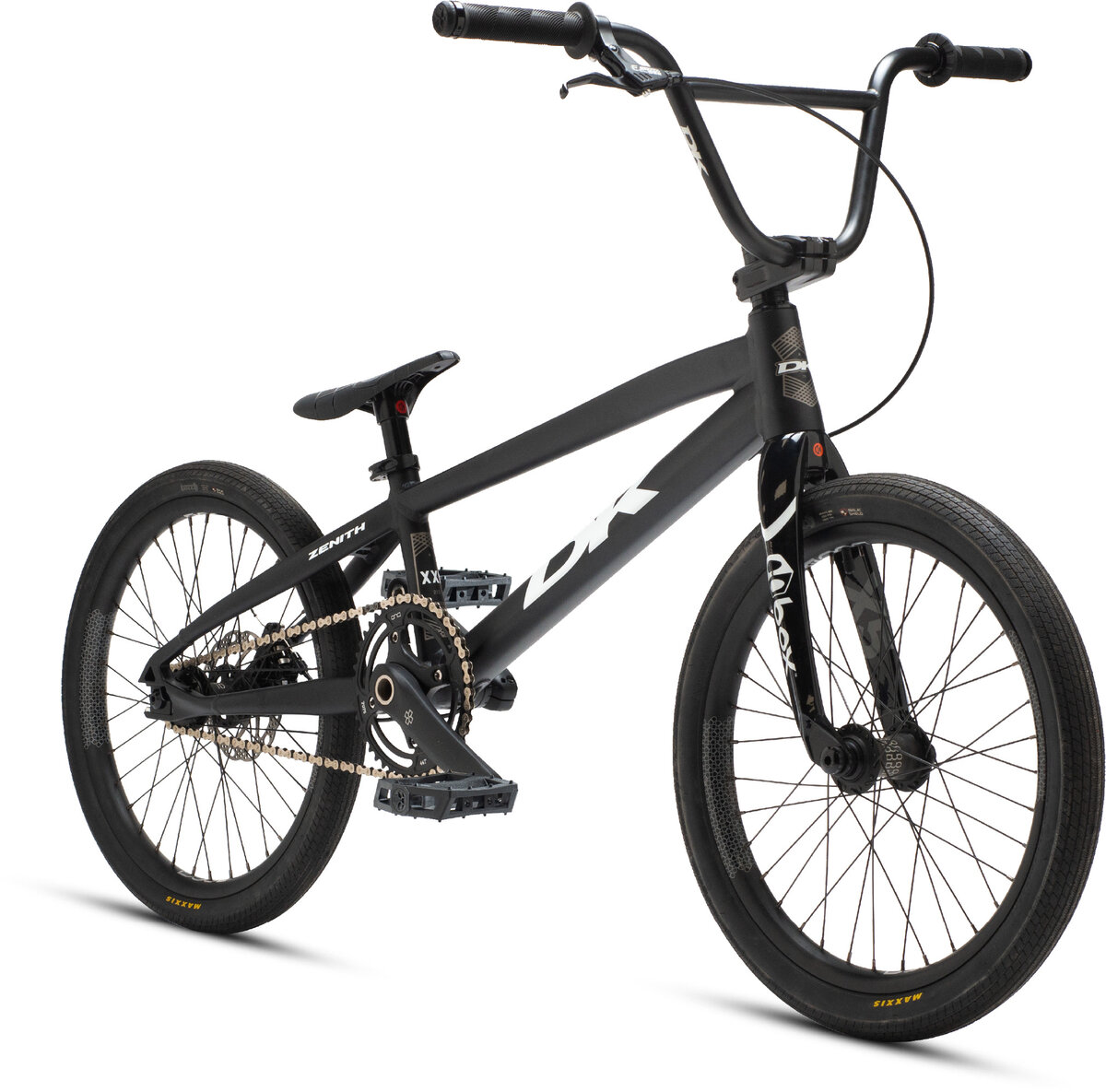

Zenith's share the same proven low-profile geometry as the DK Professional frame providing max speed and stability. Available in six frame sizes including the Zenith Disc 24-inch cruiser. All matched with pro level componentry: BOX X5 carbon fiber forks, DUO Brand drivetrains, and Maxxis rubber.
NOTE: The DK Zenith Disc frame is compatible with flat mount disc brakes only. Flat mount is more compact and lighter than post mount. With flat mount, the rear caliper affixed with two bolts running through a flattened frame surface and then threading directly into the caliper (or an adapter affixed to the caliper).
- Sizing: 5'9" - 6'
- Ages: 13 and up
- Top Tube: 21.5"
- Chain Stay: 15"
- Head Tube: 74º
- Seat Tube: 72º
- Bb Height: 11.1"
|Frame||DK Zenith Disc hydroformed 6061 aluminum frame with tapered head tube, internal cable routing, CNC machined bridges, and forged sliding flat mount disc brake system|
|Fork||BOX X5 carbon with 20mm thru-axle|
|Rims||DUO Brand R2, double wall, 36-hole, front and rear specific design|
Front: DUO Brand R2, fully sealed, 20mm thru-axle
Rear: DUO Brand R2 Disc, fully sealed, 15mm thru-axle, 16-tooth cassette with 120 engagement points
|Tires||20x1.75" (rear), 20x1.95" (front) Maxxis Torch|
|Bottom Bracket||European external (outboard)|
|Crankset||DUO Brand C2 forged hollow alloy 2-piece, 175mm|
|Chainrings||DUO Brand 44-tooth, CNC machined, alloy, 4-bolt chainring|
|Chain||Taya TB980 3/32"|
|Brakes||Tektro dual piston flat mount mechanical disc brake with 140mm rotor|
|Brake Levers||Tektro MT 2.1|
|Handlebars||8" rise, 100% chromoly|
|Tape/Grips||DK Tsuka lock-on with press-in bar plugs|
|Stem||DK forged alloy top load, 50mm reach|
|Headset||DUO Brand, sealed integrated, tapered|
|Seatpost||Integrated, 27.2mm, alloy|
|Saddle||BOX Echelon 1-piece seat/post combo|
|Pedals||DUO Brand Resilite platform|
* Subject to change without notice.
